The Korg prologue synthesizer

After the minilogue (2016) and the monologue (2017), Korg released the prologue in 2018. Finally keyboardists get something similar to the minilogue with full sized keys (available in flavours of 8 voices and 49 keys respectively 16 voices and 61 keys). What remained consistent were the two analogue oscillators and their waveshaping capabilities.

The filter design differs significantly. Additionally, the prologue introduces a third (fully digital) oscillator, called Multi Engine. It provides either a noise generator, a VPM/FM oscillator, or 16 oscillator slots the user can populate via USB. As with the minilogue xd, such oscillators are available e.g. by hammondeggs or Sound Mangling (Tim Shoebridge) or can be created by the user using the publicly available logue SDK.

The full size keybed is convenient to play, though it lacks aftertouch capabilities. Like the xd, it allows to control several of its parameters via aftertouch using external keyboards, though. Surprisingly it shares a further limitation with the xd, the complete absence of velocity control except for the two envelope generators. At least it provides a sustain level for its 2nd envelope generator, which sets it apart from the xd.

With the xd, it shares its 500 program slots, of which 200 are prepopulated by factory presets. Unlike the minilogue, neither the prologue nor the xd do benefit of the additional soundsets.

One review I read was like “The prologue sounds great, though it is not very deep”. What it does, it does extremely well. What it lacks is modulation capabilities. One LFO only, two standard envelopes, limited velocity support and the lack of a modulation matrix. Some may tend to go for a Sequential Prophet 08 or REV2. However, since it sounds differently, it may not be a real option.

The Korg minilogue xd synthesizer

The current lineup of Korg’s logue synthesizers consists of the minilogue (2016), the monologue (2017), the prologue (2018) and the minilogue xd (2019). Slowly and steadily they conquer the terrain of analogue synthesis.

The minilogue xd shares the form factor with its predecessor minilogue, though featurewise it is more a shrinked prologue than an enhanced minilogue. Compared to the latter, additions include a stereo output, an improved effects section, the inclusion of a third digital oscillator (equal to the prologue), a changed filter design (much closer to the prologue than to the original minilogue), and a joystick controller.

As with the prologue, the digital Multi Engine provides a noise generator and a VPM/FM oscillator. Additionally there are 16 slots for third party oscillators, with the Waves oscillator preinstalled. Further oscillators are provided e.g. by hammondeggs or Sound Mangling (Tim Shoebridge) or can be created by the user using the publicly available logue SDK.

The device gets shipped with 200 of the 500 memory slots populated with presets. Korg didn’t port the additonal soundsets of the original minilogue to the xd. An open source converter exists with loguetools, but since the machines differ, the results are not perfect and require manual adjustments.

For keyboardist, there are drawbacks. In case the mini keys are to small, get the module version and connect it to a full size keyboard. A painful omission is the lack of sustain and release for the envelope generator. The latter actually exists, though it is not exposed to the user interface. Instead, the decay time is used as release time. The former, however, is definitely missing. This is painful, since it is essential for dynamic sounds like Brass emulations. A mitigation was to control the cutoff frequency by velocity. Unfortunately this cannot be done with the minilogue. The xd’s keybed does not support aftertouch. Interestingly a recent update allows it to control several parameters, including the filter’s cutoff. But velocity control is still missing. Keyboardists may be served better with the prologue.

Users who want to use it in conjunction with a digital audio workstation (here’s a matching video of Korg) may either prefer the original minilogue (since threre are much more downloadable presets available). The xd may be a better choice in case one wants to use it for bass sounds (due to the changed filter) or the Multi Engine is of interest.

The Korg minilogue synthesizer

Korg Minilogue (by Aeternus, Creative Commons Attribution-Share Alike 4.0)

In 2016, Korg released the Korg minilogue. Despite its size (and mini keybed), it is an synthesizer with excellent audio qualities. It still is sold for about 70 € less than its successor, the minilogue xd, which appeared in 2019 (after the release of the flagship prologue in 2018). Surprisingly, it provides features the xd lacks, e.g. the amplitude of the LFO can be controlled by the envelope generator, and noteworthy, the EG is of usual ADSR type, while the xd only provides attack and decay, no sustain or release.

The minilogue’s filter sounds completely different compared to the xd. Especially the resonance lets one create nice sweeps the xd cannot do this way, while it notably thins out the lower frequencies, which the xd doesn’t.

The device gets shipped with 100 presets populating its 200 memory slots. Korg provides seven further soundpacks as free downloads. Further artists have created soundpacks, and posted demonstrations of the presets on Youtube. One of them is Adam Borseti, who showcases some of his presets in this video. They are currently available via Reverb.com.

The minilogue, the minilogue xd and the prologue are quite similar and provide excellent analogue sound. In case the third user programmable oscillator of the xd was of little interest, I’d still go for the original minilogue.

The Hurdy-gurdy explained

About 20 Years ago, I started to built a hurdy-gurdy, but never finished it. This evening, I found some videos of Patty Gurdy explaning her instrument and the Buzzing Bridge.

BTW: I found her solo of “Leaves And Lemons” quite impressive, though some postprocessiong might be involved. And it reminds me of a concert by Rüdiger Oppermann about 7 years ago :) .

Edit 2020-12-07: Michalina Malisz proves it’s possible to play it even hurdy’er :) .

Sequential Prophet Rev2 – undocumented special menu

The Prophet Rev2 features an undocumented special menu. Besides other things, it allows to copy user banks to preset banks (and the other way around). A very handy feature in case one wants to host other than the factory patches in the “ROM” preset banks.

To call the “debug” menu, just press the buttons down, up and global simultaneously.

Get the duration of a couple of audio files

I wanted to know the total duration of a couple of mp3 files, using onboard tools of a Mac. Thanks to StackOverflow, it’s as simple as:

find . -name "*.mp3" -exec afinfo {} \; | awk '/estimated duration/ { print $3 }' | paste -sd+ - | bc | awk '{printf("%d:%02d:%02d:%02d\n",($1/60/60/24),($1/60/60%24),($1/60%60),($1%60))}'

Obviously, I could have figured this out in a couple of seconds by reading some man pages. But searching the web was even more convenient. So I leave it up to you to figure out what exactly the above commands are doing. Alternatively, just use soxi :) .

Sequential Prophet Rev2 startup sound

The Prophet always is loading a certain patch when booting. Unlike other instruments, it does neither remember the last used preset nor start with the sound of the very first memory slot. Instead, the user can actually set up the sound to load the following way:

  • Select the preset the Prophet shall load at startup.
  • Enter global menu.
  • Leave global menu.

That’s it.

Modulation matters

Modulation is a key ingredient to synthesizer sounds. Modulation adds movement to the sounds, making them less static. Common modulation techniques include envelopes to shape the volume and partials over time, low frequency oscillators (LFO) to periodically alter the pitch of oscillators (vibrato) or the volume of the sound (tremolo), or velocity to add volume or brightness to notes played harder than others. Advanced synthesizers provide a modulation matrix which allows to route modulation sources (like the ones mentioned above) to various destinations.

As a rule of thumb, the more modulation capabilities exist, the more different sounds can be produced by a synthesizer and the more complicated it is to understand and use. As a consequence, some synthesizers are designed focussing on the quality of the basic building blocks (oscillators, filters) and provide little modulation capabilities (e.g. one LFO only synths like the Korg prologue and minilogue xd or the DSI/Sequential OB-6, for which Steve Hunt offers a “Low Frequency Expander for OB-6” breakout box).

When it comes to LFOs, it’s not only the amount that matters, but also the waveforms provided. The Korg prologue and minilogue xd’s LFO just provide three (saw, triangle, square). More advanced LFOs may also provide Random/S&H waveforms. A waveform seldom to find is Sample & Glide, which provides a less stepped random waveform. It can be found, for example, in the Korg Z1 (four LFOS) or emulated in the John Bown Solaris (four LFOS) by routing the S&H waveform through a lag processor (actually a low pass filter). This waveform allows for very subtle, unobtrusive modulations.

The abovementioned Korgs just provide one LFO with three wavefroms only. Additionally, the single LFO can only be routed to one destination at a time (pitch, shape, cutoff). This design is pretty straightforward, and the panel controls give the musician immediate access to the modulation. While I’d like to congratulate the designers for resisting the temptatoin to add more, I perceive the design as very limiting.

At the other end, there are synths (like the Access Virus or the Sequential Prophet 08) which provide both multiple LFOs and a modulation matrix. One can create a lot of very interesting sounds with them, but without reading (and understanding) the modulation matrix menu entries it is difficult to understand how a particular sound was designed. But anyway, the sounds of analog machines with modulation matrix are much sought after, as the still popular Oberheim Matrix-1000 proves.

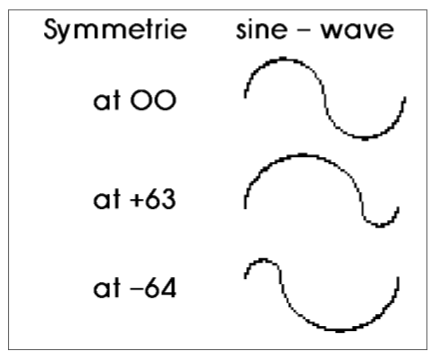

The original Waldorf Microwave I, known for its extremely punchy envelopes, provides two special parameters for the LFOs. The first one is “Symmetry”, which has a special effect on the sine wave.

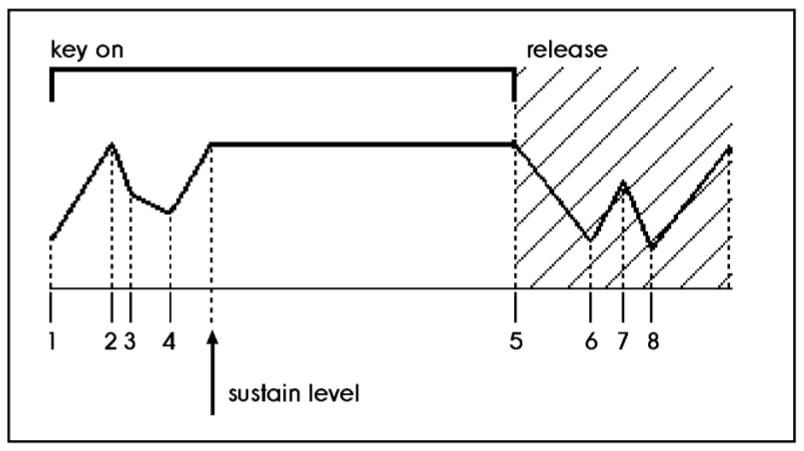

The second one is “Humanize”, which adds random variations to its rate. The Microwave also is known for its extremely flexible (and even loopable) third “Wave envelope”.

Admittedly, I’m a big fan of all kinds of weird modulation capabilities and can spend hours exploring what sounds can be achieved using them. On the other hand, machines limited in modulation are interesting as well, as I pay more attention on the details of the limited capabilities, which fosters creativity, as Kebu states.

This entry was posted in Uncategorized on by .

Updating the firmware of a Korg prologue

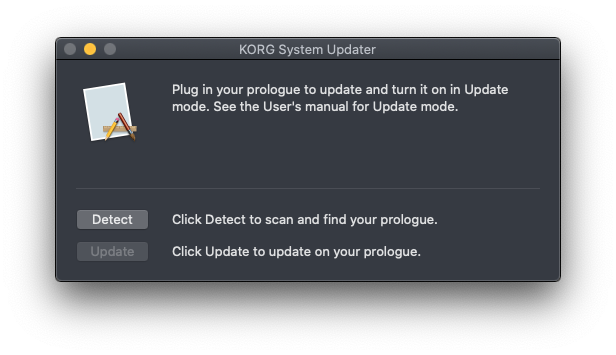

As with the minilogue xd, the prologue updater tool asks to consult the user manual for details how to boot the synth into update mode. Unfortunately, neither the german nor the english manual contain the information required. It’s simple. Just hold the buttons six and eight while powering the synth on and wait until the display reads as “Version Up Mode”. Just upgraded mine from 2.0 to 2.1.

This entry was posted in Uncategorized on by .

Korg prologue and minilogue xd – Using liked programs aka favorites

Both synths provide a favorite system. Unfortunately they work differently and are hard to remember in case you only use them every now and then. So here’s a quick reference.

minilogue xd

You can register up to 16 favorites using the panel buttons:

  • Select the program you want to register.
  • Hold the Shift button.
  • Press the button which you’d like to serve as a shortcut to this program for about a second or so.

To recall:

  • Hold the Shift button.
  • Briefly press the button which represents the desired program.

prologue

To “like” or “unlike” a program:

  • Select the program you want to “like”.
  • Press button 4 for about a second or so.

To scroll through liked programs:

  • Ensure button 4 is lit.
  • Turn the Program/Value dial.

To scroll through programs by category:

  • Press button 2 multiple times to select the desired category.
  • Turn the Program/Value dial to scroll through the programs of the selected category.

To return to “normal” scrolling behaviour by program number:

  • Press button 1.
  • Turn the Program/Value dial to scroll through the programs one by one.
  • Press button 1 multiple times to jump forward by 50 program numbers.

The prologue provides further sorting modes and a live set feature. See page 12 of its user manual for details.

This entry was posted in Uncategorized on by .

OB-Xd preset location

The OB-Xd, provided by George Reales via discoDSP (and source on GitHub), is an excellent virtual analogue synthesizer emulation. It is not only available as a plugin for several DAWs, but also as a standalone app.

VSTs store individual presets as FXP files, or collections (aka banks) of them as FXB files.

In case you have downloaded an FXB file and want to install it for use in the stand alone app on a Mac, simply place the FXB in
/Users/YourUserName/Documents/discoDSP/OB-Xd/Banks/

Endlich mal in Lüneburg gewesen

Neben Lübeck ist natürlich auch Lüneburg ein äußerst attraktives Reiseziel. Die uralten Backsteinbauten sind hier mindestens genauso schief wie dort, nicht zuletzt bedingt durch Bodenbewegungen durch die ein gutes Jahrtausend währende Salzgewinnung, der unter anderem die Marienkirche und die Lambertikirche zum Opfer fielen.

Von den drei verbliebenen Altstadtkirchen ist neben St. Michaelis und St. Nicolai St. Johannis als Arbeitsplatz Georg Böhms besonders interessant. Neben der 2010 erbauten, französisch-symphonisch geprägten Chororgel findet sich hier ein historisches Instrument, das, wie üblich, im Laufe der Zeit immer wieder umgebaut wurde, unter anderem während der Zeit Böhms. An dem Instrument konnte ich zweimal Joachim Vogelsänger hören. Passend zum Instrument gab es Werke von Bruhns (Präludium in e-Moll, “das große”), Sweelinck (Echofantasie in d) und Bach (Passacaglia und Fuge c-Moll, an die ich mich bislang selbst nicht gewagt habe).

In St. Nicolai steht ein typisch deutsches Instrument der Romantik von 1899, das zu Beginn des dritten Jahrtausends auf den Zustand zur Erbauungszeit zurückgesetzt wurde. Hier konnte ich im Rahmen des Lüneburger Orgelsommers ein beeindruckendes Konzert von Michal Markuszewski hören, der gut zum Instrument passende LIteratur ausgewählt hatte und das Instrument wie seine Westentasche zu kennen schien.

In St. Michaelis konnte ich keines der Instrumente hören, in der Unterkirche hat eine Organistin immerhin geübt.

Über das Konzertangebot hinaus hat Lüneburg natürlich jede Menge mehr zu bieten. Für Musikliebhaber ist die Stadt allerdings ein wichtiger “Wallfahrtsort” :) .

Endlich mal in Lübeck gewesen

Mit Lübeck, das schon lange auf meiner Liste steht, verbindet man einiges: Hansestadt, Holstentor, Marzipan, Gänge und Höfe, Literatur- und Musikzentrum. Wer nur wenig Zeit hat, stürmt am besten durch das Holstentor direkt zur Kultur- und Universitätkirche St. Petri, um die Stadt aus der Vogelperspektive zu bestaunen. Allerdings ist die Stadt Einheimischen zufolge heuer coronabedingt stark überlaufen. Man sollte daher bis zu einer Stunde Wartezeit mitbringen, es sei denn, man kann schon kurz vor Öffnung um 11h vor Ort sein. Ähnliches gilt für das Hansemuseum. Auf halber Höhe der Zugangstreppe steht ein Schild mit der sinngemäßen Aufschrift »Ab hier weniger als eine Stunde Wartezeit«.

Wer genug Zeit mitbringt, wird auf der Altstadtinsel die vielen historischen Backsteinbauwerke, die sich im Laufe der Jahrhunderte enorm gesetzt haben, bewundern, Kirchen und Museen besichtigen und sich über die zahllosen Restaurants und Cafes freuen.

Für mich ist natürlich die Marienkirche als Wirkstätte von Franz Tunder und Dieterich Buxtehude von besonderem Interesse. Am Donnerstag spielte deren Nachfolger Johannes Unger auf der Hauptorgel von Kemper Werke von Rheinberger, Schumann und Liszt, darunter »Fantasia und Fuge über B-A-C-H«. Das Programm war somit stark durch die Romantik geprägt.

Am Freitag spielte Arvid Gast an den beiden Orgeln der Jakobikirche ein Programm mit Werken von Buxtehude, Bach, Danksagmüller, Dupré und Vierne. Ein schöner Abschluss, bevor es mich am Samstag wieder gen Süden zieht. Von der Lübecker Altstadt war ich angenehm überrascht. Natürlich informiert man sich schon vor dem Besuch, aber so schöne Städte hat Deutschland, nicht zuletzt kriegsbedingt, nicht viele zu bieten.

An diesem Wochenende kühlt es nach der Hitze der vergangenen Tage merklich ab und in mehreren Bundesländern enden die Sommerferien, was sich bis Hannover am Reiseverkehr bemerkbar machte.

Die Corona-Neuinfektionen erreichen wieder Werte vergleichbar mit April, Offenbach muss zu Gegenmaßnahmen greifen, da die kritische Infektionsgrenze erreicht ist und Reiseregionen in Kroatien werden zu Risikogebieten erklärt. Wir dürfen gespannt sein, wie sich das Infektionsgeschehen in den Herbst hinein weiter entwickeln wird.

Roland Lopes an der Dubois-Orgel in Wissembourg

SAMSUNG CSC

Wie Christian Robischon letzte Woche war heute auch Roland Lopes bereits zum dritten Male in Weißenburg zu hören. Auf ihn freue ich mich jedesmal besonders. Das liegt an an der Auswahl der Stücke, seiner Registrierung, seiner Spielweise und auch daran, dass er gerne Transkriptionen von Werken mitbringt, die man nicht so oft an der Orgel hört. Hatte er am 5. August 2012 und am 30. Juli 2017 noch Transkriptionen von Jean-Babtiste Lully im Gepäck, so gab es heute eine Traskription von Johann-Sebastian Bach und einige von Jean-Philippe Rameau, der nach Lully als der nächste bedeutende französische Barockkomponist gelten darf. Das Programm:

  • Johann Sebastian Bach (1685-1750) – Fantaisie en sol mineur (BWV 542)
  • Jean-Philippe Rameau (1683-1764) – Ouverture (Indes galantes)
  • Jean-Philippe Rameau (1683-1764) – Menuets (Indes galantes)
  • Jean-Philippe Rameau (1683-1764) – Musette en Quatuor (Platée)
  • Jean-Philippe Rameau (1683-1764) – Menuets en trio et en duo (Zoroastre)
  • Jean-Philippe Rameau (1683-1764) – Entrée (Boréades)
  • Jean-Philippe Rameau (1683-1764) – Passacaille (Hippolyte & Aricie)
  • Johann Sebastian Bach (1685-1750) – Largo de la 3ème sonate pour violon (BWV 1005)
  • Denis Bédard (*1950) – Suite du 1er ton (1993) – Plein Jeu
  • Denis Bédard (*1950) – Suite du 1er ton (1993) – Dialogue
  • Denis Bédard (*1950) – Suite du 1er ton (1993) – Récit
  • Denis Bédard (*1950) – Suite du 1er ton (1993) – Grand Jeu

Christian Robischon an der Dubois-Orgel in Wissembourg

SAMSUNG CSC

Coronabedingt habe ich heuer die beiden ersten Konzerte (Hans-Eugen Ekert am 2020-08-02 und Michel Bouvard & Yasuko Uyama-Bouvard am 2020-08-09) der Vésperales verpasst. Umso mehr habe ich mich darüber gefreut, wie Christian Robischon, der schon am 30. August 2015 und am 26. August 2018 zu hören war, erneut das Potential des Instrumentes zur Geltung brachte. Das Programm:

  • Jean Adam Guilain (ca. 1680-1739) – Suite du second ton pour le Magnificat (1706) – Prélude
  • Jean Adam Guilain (ca. 1680-1739) – Suite du second ton pour le Magnificat (1706) – Tierce en taille
  • Jean Adam Guilain (ca. 1680-1739) – Suite du second ton pour le Magnificat (1706) – Duo
  • Jean Adam Guilain (ca. 1680-1739) – Suite du second ton pour le Magnificat (1706) – Basse de trompette
  • Jean Adam Guilain (ca. 1680-1739) – Suite du second ton pour le Magnificat (1706) – Trio de flûtes
  • Jean Adam Guilain (ca. 1680-1739) – Suite du second ton pour le Magnificat (1706) – Dialogue
  • Jacques Thomelin (ca. 1635–1693) – Fugue sur «Ave Maria Stella» I
  • Jacques Thomelin (ca. 1635–1693) – Fugue sur «Ave Maria Stella» II
  • Jacques Boyvin (1649-1706) – Extraits de la suite du Sème ton – Prélude
  • Jacques Boyvin (1649-1706) – Extraits de la suite du Sème ton – Basse de trompette et dessous de cornet
  • Samuel Scheidt (1587-1654) – Magnifikat 6 toni I
  • Samuel Scheidt (1587-1654) – Magnifikat 6 toni II
  • Samuel Scheidt (1587-1654) – Magnifikat 6 toni III
  • Samuel Scheidt (1587-1654) – Magnifikat 6 toni IV
  • Samuel Scheidt (1587-1654) – Magnifikat 6 toni V
  • Samuel Scheidt (1587-1654) – Magnifikat 6 toni VI
  • Nicolas de Grigny (1672-1703) – Extrait du Kyrie de la Messe – Cromorne en taille à 2 parties
  • Nicolas de Grigny (1672-1703) – Hymne Veni Creator – Plein Jeu
  • Nicolas de Grigny (1672-1703) – Hymne Veni Creator – Fugue à 5
  • Nicolas de Grigny (1672-1703) – Hymne Veni Creator – Duo
  • Nicolas de Grigny (1672-1703) – Hymne Veni Creator – Récit
  • Nicolas de Grigny (1672-1703) – Hymne Veni Creator – Dialogue sur les Grands Jeux
  • Michel Corrette (1707-1795) – Final du Magnificat en la majeur

Korg Wavedrum live – Hiromi, Jackson, Smith

Percussionists like the Wavedrum due to its dynamics. Accidentally I stumbled upon a recording of Hiromi’s Trio project, where Steve Smith uses it in a pièce.

The energy the three musicians put into their music is incredible, as is their choreography.

Zynthian, the fun synthesizer

Of course I bought the V4 kit immediately, despite it’s more a project for the cold and dark season.

It took the whole eve yesterday to assemble the hardware, despite the fact I luckily had all the tools required available. Unfortunately it didn’t boot. Though the LEDs on the Raspberry PI and the soundcard lit during startup, the screen just left blank. Today I tried the following:

  • Try a new and more powerful power supply, just in case it was to weak to power all the hardware and the screen (as it happened with another Raspberry PI ages ago). This didn’t solve the issue.
  • Recheck the wireing inside the box. Everything appeared to be fine. Reconnecting the cables didn’t solve the issue.
  • Recheck the firmware image used. Heureka. I used »2020-07-27-zynthianos-buster-lite-armhf-1.0.0.zip«, despite the fact the page clearly states that releases labeled as “RC” should be more stable. I downloaded »2020-05-27-zynthianos-buster-lite-1.0.0-RC2.zip«, flashed it using Etcher and the device did start up immediately.

I connected a MIDI keybed and started Aeolus, a pipe organ emulation, on the device. Everything just worked “out of the box”. Phantastic.

I’ll check wether everything works as expected during the next couple of days. For now, I’m extremely content, thanks to the great work of all the people involved.

Zynthian Update – Raspberry Pi 4

Ages ago I was part of the Linux Audio community, but eventually I was bored by all the fiddling around and left Linux alone. Well, not exactly. For the kids of a relative, I configured a Raspberry Pi with a USB breakout box to use it as a pipe organ emulator. But some time later, they did the same I did – they bought a hardware pipe organ emulation. And I’m still extremely content with the instrument.

The advent of the Raspberry Pi 4, however, again makes the platform interesting for audio processing. And Zynthian, an open source project, upgraded to it. The v4 kit is available for 325 €. Before diving into it, I recommend an amazona.de article for v3 as well as the Zynthian wiki.

Should I buy one of those tempting gadgets? Well, probably :) .
